Flight control electronic tuning drone accessories
Flight control electronic tuning drone accessories
Flight control electronic tuning drone accessories

Flight control electronic tuning drone accessories

Get Latest Price
Min. Order:1
Contact Now
Product Description
Packaging & Delivery
Product Description
Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description
131214

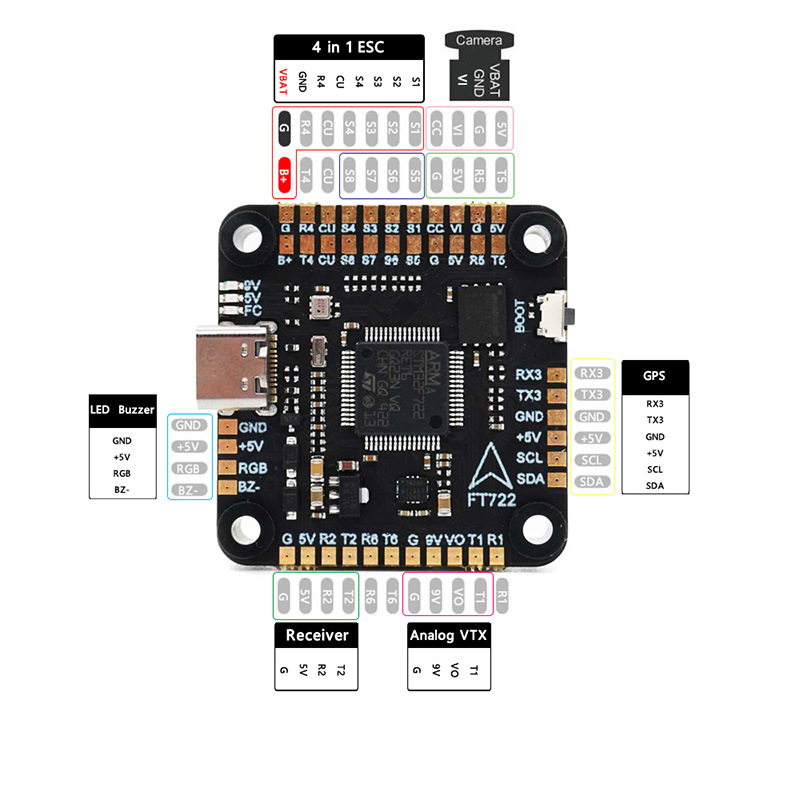

Main Control Unit (MCU): STM32F72RET6Gyroscope (IMU):ICM42688USB interface type: Type-cVideo Overlay (OSD): AT7456EInput voltage: 3-8SPL10(12-36V)Barometer: SPL06-001Black Box: Built in 1óM Flash MemoryBEC:9V/2A,5V/3ASupporting motors: M1-M8Serial port: 6 UART1/2/3/4/5/6Buzzer: Supports 5V activeReceiver: ELRS (CRSF), TBS (CRSF), SUBS, IBUSDjl Air Unit: YES (solder pads/sockets)IC:12C1LED Stream: YES (solder pad/four-way socket)Ammeter: YesFirmware Name: STM32F722, Betaflight (Factory Default) INAV
Size:36.5*38MM
Installation hole spacing: 30.5*30.5mm/M3
Weight: 9.5g

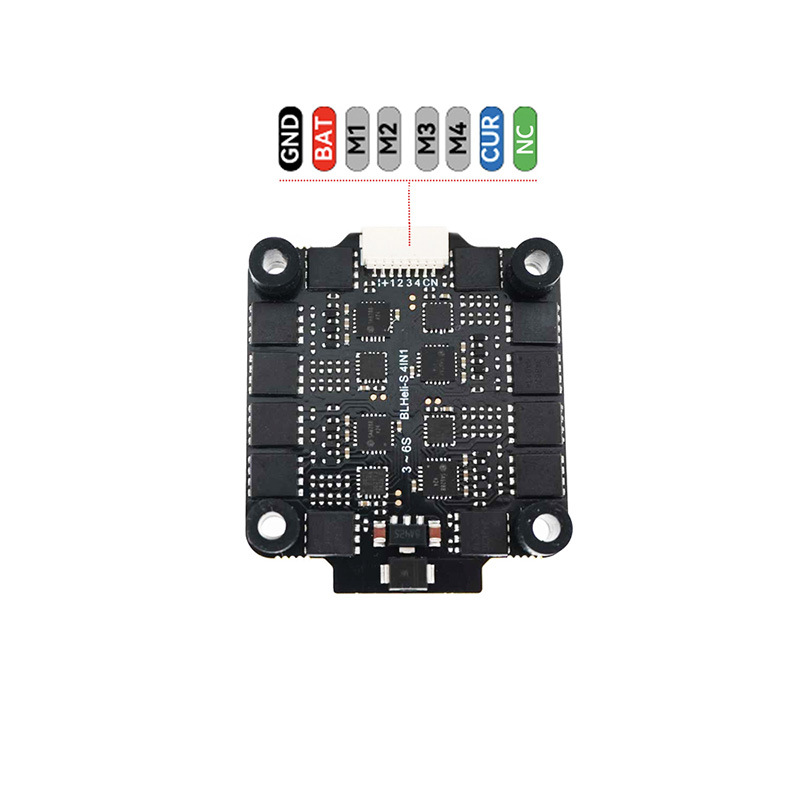

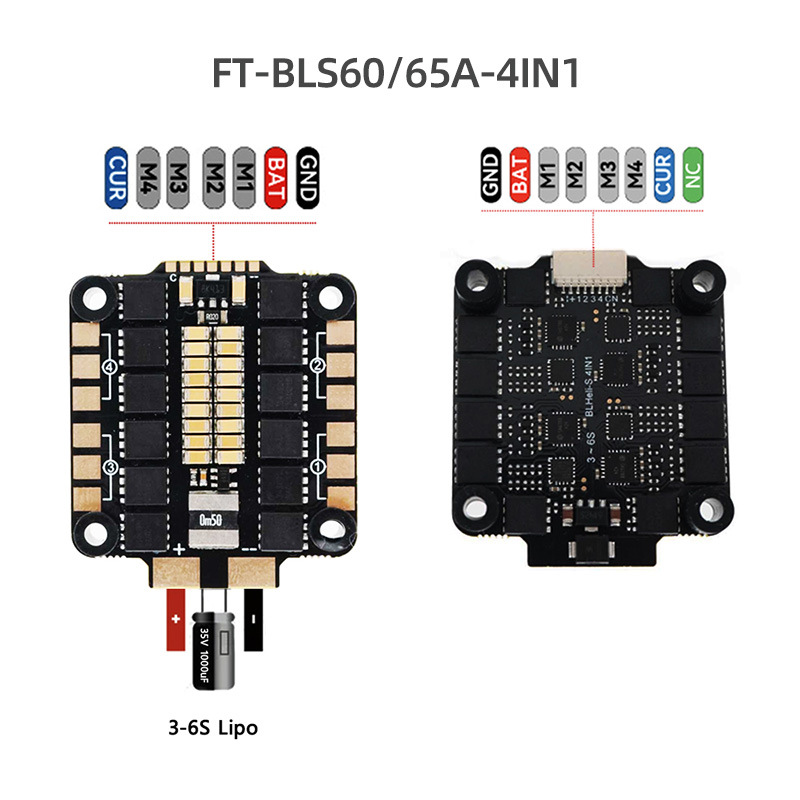

FT-BLS6A/65-4IN1 ESC
Firmware:MH 40,48-v0.21.0
Continuous current: 60A*4/65A*4
Maximum current: 70A* 4/80A*4
TVs protection diode:YES
External capacitor: 1000uF/35V ZLH rubycon capacitor
Temperature protection: Yes
Input power supply: 3-6S LIPO (12-25V)
Ammeter: Yes
Installation hole spacing:30.5*30.5mm/3
Size:37*42.5MM
Weight: 13g


packing list
1. Flight control electronic control connection cable 8pin * 1pcs
2. XT60 power cord * 1pcs
3. Camera connection cable * 1pcs
4. Simulated image transmission connection line * 1pcs
5. 1000uF/35V Ruby Capacitor * 1pcs
6. Shock absorber balls * 8pcs
7. M3 * 25 screws * 4pcs
8. M3 anti loosening nuts * 4pcs
