Product Description

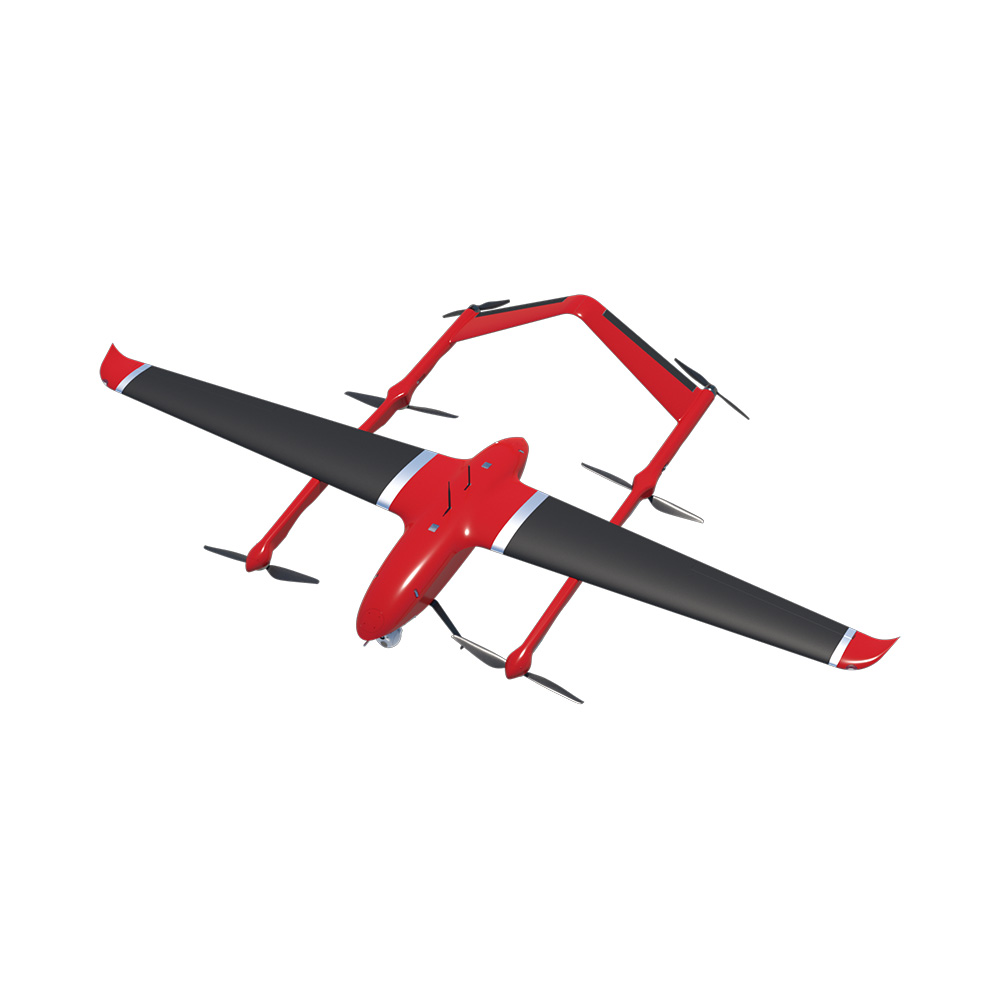

The Winged Tiger M11 is a pure electric composite material vertical takeoff and landing fixed wing. In order to meet the requirements of high load and long endurance, the flight platform adopts a double tail support design, which can be quickly assembled and deployed without tools. It has the characteristics of heavy load and stable flight. The battery life can reach 240 minutes, with a maximum task load of 15kg, widely used for tasks such as heavy load inspection, communication relay, and material transportation.

Main material: Composite material

Packing size: Box 1:1840 * 1010 * 740mm

Box 2: 1840 * 470 * 1110 mm

Expand maximum size (including blades): wingspan 4962mm, length 2608mm, height 952mm

Body weight: 29.5kg (excluding battery and mounting)

Empty weight: 50kg

Maximum load capacity: 15kg

Battery life: No load ≥ 240min

Carrying a 5kg payload for ≥ 150min

Maximum wind resistance: Level 7 (fixed wing mode)

Image transmission frequency: 1.4GHz&450MHz

Image transmission distance: 80km
