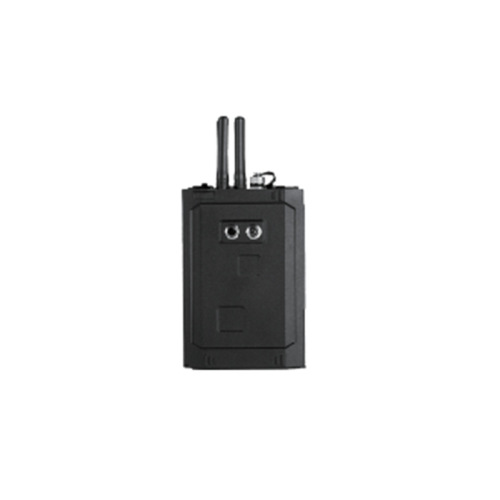

Image transmission transmitter receiver
Image transmission transmitter receiver
Image transmission transmitter receiver

Image transmission transmitter receiver

Get Latest Price
Min. Order:1
Contact Now
Product Description
Packaging & Delivery
Product Description
Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description
7
Specification parameters
Video input: 1 channel video input, HDMI/AHD input, choose 1 from 2 options
Audio input: Supports 3.5mm headphone jack
Audio output: Supports 3.5mm headphone jack
Video encoding: H.265, 264 Main Profile
Video resolution: 1080P, 720P optional
Audio encoding: AAC, ADPCM, G711A, G711U and other compression methods
TF card: Dual TF card storage, single card supports up to 128GB
Beidou/GPS: External Beidou and GPS hybrid positioning
Wired: RJ45, supports TCP/IP, ARP, HTTP, SMTP, RTP, DHCP, PPPOE protocols
Wireless: Supports 4G network, 7-mode full network connection, four card, dual card, single card transmission, multiple wireless channels bundled for transmission
Private network: Supports 400M/800M/1.4G/1.8G LTE private network
OLED display screen: can display ① video channel status ② network channel ③ signal strength and status of 4 cards ④ GPS working status ⑤ battery information and charging status, etc. ⑥ platform connection status ⑦ self check prompt just started
Charging: DC12.6V 3A
Power consumption: Standby: 4W, Four card transmission: 11.5W
Lithium battery: Built in lithium battery, with a range of more than 4 hours
Size/Weight: 116mmx40mmx 171.2mm, approximately 1.0Kg (including antenna x4)
Operating temperature: -10 ° C~55 ° C
