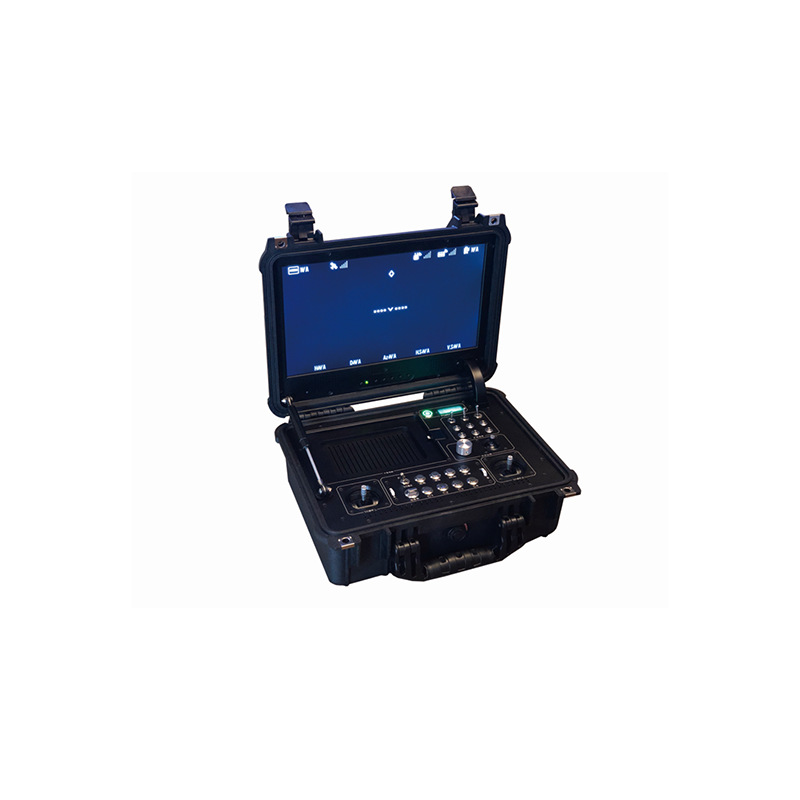

Ground Station Integrated Management System
Ground Station Integrated Management System
Ground Station Integrated Management System

Ground Station Integrated Management System

Get Latest Price
Min. Order:1
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Model No.: DGS-500

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description
4
Specification parameters

Ground station dimensions (length x width x height): 450mm x 350mm x 200mm
Ground station weight: 7.5 kilograms
Image display screen: equipped with a 15.6-inch high brightness LCD high-definition display screen, with multi touch function
Communication control distance: In unobstructed environments, the maximum control distance between ground stations and drones can reach 10-15km
Function: Flight control, camera control, zoom control, parameter adjustment
Shell: Military grade integrated engineering plastic box, all metal operation panel and buttons
Waterproof level: IP54 protection level;
Route planning: Route planning that meets the requirements of oblique photography
Storage: Supports external storage devices (SD/TF cards) with USB interface
Network: Supports three major carrier networks with Wi Fi functionality
Positioning module: The ground station is equipped with a built-in GPS module and can expand the RTK receiving module
Frequency analysis: With spectrum scanning function, it can know the interference situation of the on-site electromagnetic field environment
Battery working time: equipped with a 25000mAh large capacity battery, with a range of 6 hours;
Expansion function: Supports device expansion, allowing for high-altitude calling and aerial throwing of drones;
Transmission: Built in digital radio and high-definition digital image transmission link, with relay forwarding function
